R700S Track-Mounted Impact Crusher
The “INNER – CITY" Crusher for highest performance

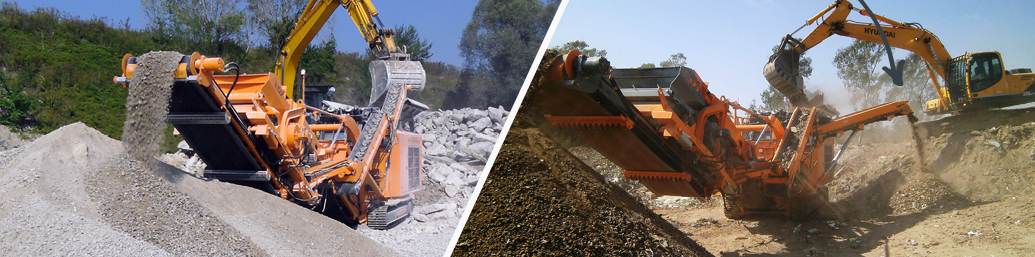

The R700S mobile impact crusher is especially designed for applications on limited space – as for example on inner-city job sites. It is easily transported from one job site to another through its optimal measures and is the perfect combination of compactness and maximum performance.
This mobile crushing plant is base on Rocksters hydraulic concept and guarantees profitable and flexible recycling of asphalt, concrete and demolition debris as well as natural stone.
This Rockster crushing plant guarantees increased ease of use thanks to the intuitive multifunction display, a hydraulic gap adjustment, as well as an automatic, continuous control of the conveying speed. The versatile adjustment options ensure excellent final grain quality.
Technical Data
| Entry opening | 710 x 650 mm / 28" x 26" |
| Rotor | 4 hammers |
| Crusher drive | Hydrostatic |
| Swing beams | 2 (individually adjustable) |
| Gap adjustment | Fully hydraulic |
| Drive unit | Stage IIIA / Stage IV / Stage V engine |
| Pre-screen | Vibrating (to avoid blockages) |
| Transport dimensions & Weight R700s | Length 9,00 m / 29’6" Width 2,41 m / 7’11" Height 3,15 m / 10’4" Weight 19,9 t / 43,900 lbs |
