R1100S Track-Mounted Impact Crusher

R1100S Track-Mounted Impact Crusher

– Vibration feeder with load depended speed regulation (adjustable by remote control)
– Continuous,fully hydraulic gap adjustment (electronic display)
– Easy and intuitive multi function display
– Unique double – functional return belt system
– Hydraulically lowerable screen box for easy change of screens and maintenance

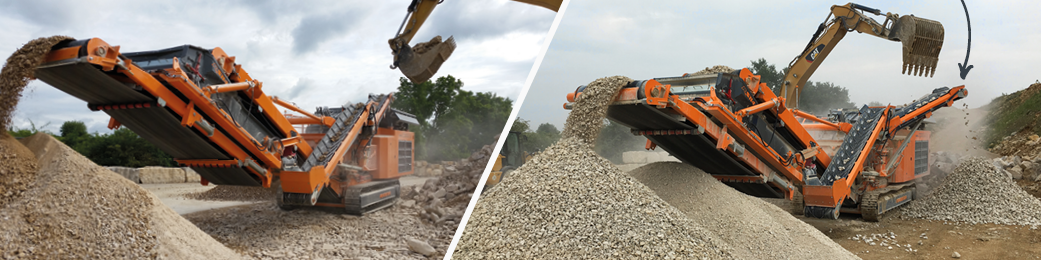

The mobile crushing plant R1100S is based on Rockster’s hydraulic concept and guarantees profitable and flexible recycling of asphalt, concrete and any kind of demolition debris. Moreover it’s equipped with a heavey duty rotor and therefore also ideal for applications in natural stone.

This impactor guarantees increased ease of use thanks to the intuitive multi function display, a hydraulic gap adjustment, as well as an automatic, continuous control of the conveying speed. The versatile adjustment options ensure excellent final grain quality.

Technical Data

Inlet opening 1100 x 720 mm / 44" x 29"
Rotor 4 hammers
Crusher drive Hydrostatic
Rotor speed Stepless adjustable
Swing beams 2 (individually adjustable)
Gap adjustment Fully hydraulic
Drive unit Tier 3A – Stage IIIA / Tier 4 Final – Stage IV / Stage V
Pre-screen Vibration (to avoid blockages)
Transport dimensions & Weight R1100S Length 13,60 m / 44’8"
Width 2,75 m / 9’1"
Height 3,20 m / 10’6"
Weight 32,90 t / 72,600 lbs
