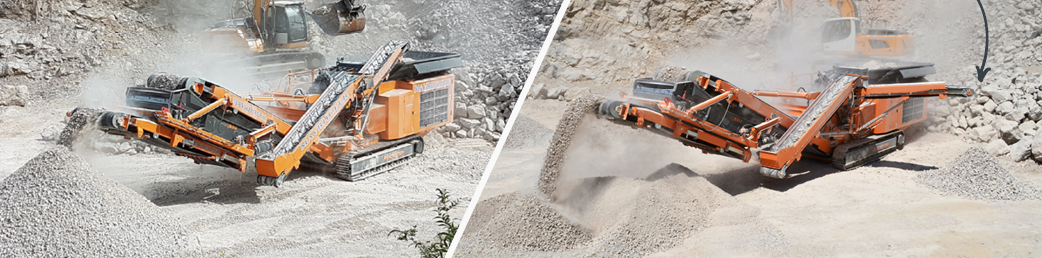

R1000S Track-Mounted Impact Crusher

R1000S Track-Mounted Impact Crusher


Rocksters new impact crusher R1000S is especially designed to increase operating and safety comfort and includes a wide diversity of refinements:

– Self-monitoring plant with easy gap adjustment and integrated measuring system of full machine control and analysis
– Easy gape adjustment via display
– 2-deck pre-screener for a further fraction plus increase of machine efficiency
– Vibrating pre-screener for anti-blockage
– Auto start and -stop function -> sophisticated multi functional color display with various quick start functions (different settings for a varienty of applications)
– Increased operator protection (Hammer changing device, hydraulically lowerable screen box and main conveyor,…)
– Double functional return and stockpile belt
– Low noise emission and environmentally friendly drive
– Compact transport dimensions

Technical Data

Inlet opening 960 x 720 mm / 38" x 29"
Rotor 4 hammers
Crusher drive Hydrostatic
Rotor speed Stepless adjustable
Swing beams 2 (individually adjustable)
Gap adjustment Fully hydraulic
Drive unit Tier 3A – Stage IIIA / Tier 4 Final – Stage IV / Stage V
Pre-screen Vibration (to avoid blockages)
Transport dimensions & Weight R1000S Length 10,10 m / 33’2"
Width 2,55 m / 8’5"
Height 3,20 m / 10’6"
Weight 31,00 t / 68,350 lbs
