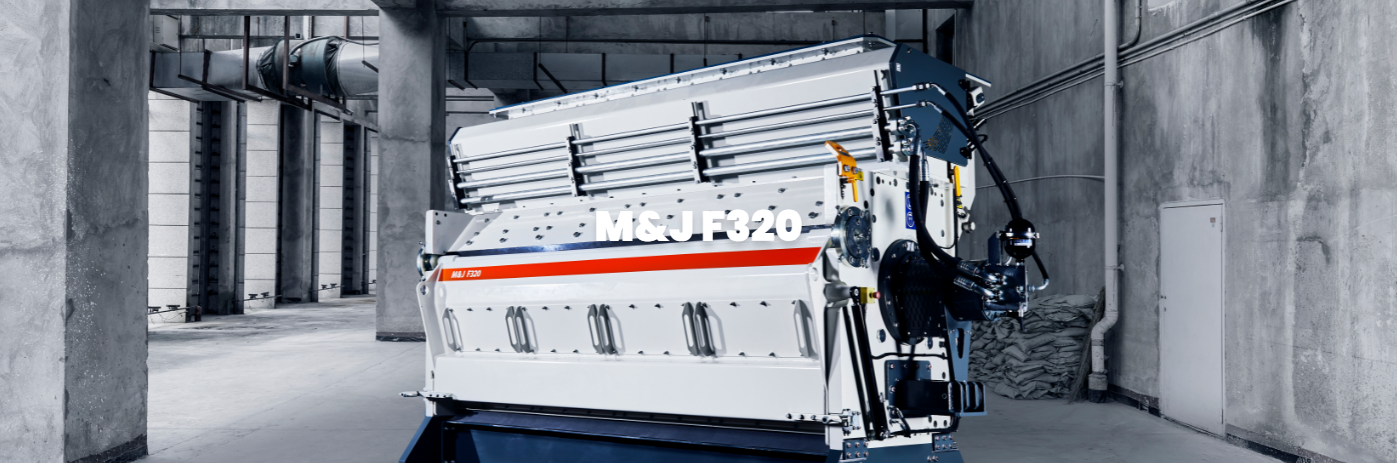

M&J F 320 Fine-Shredder
Heavy-Duty-Fine-Shredder for production of RDF/SRF material
Robust M&J F 320 Fine-Shredder delivering high capacities. The low operation costs are due to an innovative design. The M&J F 320 has a unique cutting system that requires minimal daily maintenance. Once the rotor knives and static knifes have been set in the initial setup, or after a change of knife holders, it does not require routine adjustment like other competitor. The M&J F 320 also generates a limited amount of heat, so you can avoid frustrating downtime due to, for example, molten plastic. Stable and flexible production are key words for the M&J F 320. You just set the output size and adjust the pusher to meet your needs and off you go.
Technical Data
Working Data | M&J F 320 Fine-Shredder |
Number of rotors | 1 |
Number of knives | 168 / 336 |
Rotating speed | 100 – 280 rpm |
Motor type | Electric |
Power | 2 x 200 KW |
RDF, 20 mm | 10,0 tonnes per hour |
RDF, 30 mm | 15,0 tonnes per hour |
RDF, 40 mm | 18,0 tonnes per hour |
RDF, 50 mm | 21,0 tonnes per hour |
RDF, 60 mm | 22,0 tonnes per hour |
