BACKHUS Series A 30

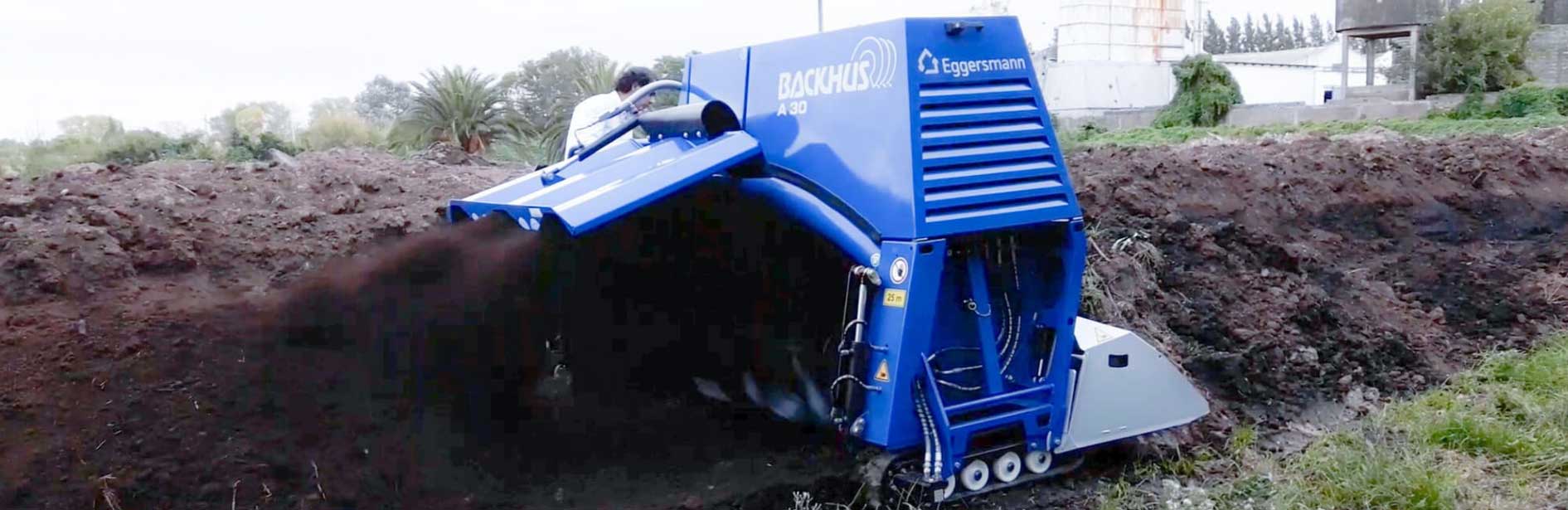

The BACKHUS A 30 is a robust, compact and manoeuvrable turner that is easy to operate. It requires little maintenance and provides superior performance. The A 30 is easy to transport and assures maximum flexibility. It is ideally suited for use in the gardening, landscaping, fruit growing, and market gardening sectors as well as for the maintenance of municipal parks.
Special features :
- Heavy-duty and compact design
- Economical diesel technology
- Height-adjustable, reversible rotor
- Fully hydraulic, low maintenance drive
- Easy to transport – optimal utilization of space available
- Easy and ready to use in no time at all
Technical Data
| Windrow width up to | m | 3.0 |
| Windrow height up to | m | 1.3 |
| Windrow cross section | m² | 2.2 |
| Surface utilization* | m³/m² | 0.74 |
| Width track clearer | m | 0.22 |
| Cleaning share | % | 2.2 |
| Granular size up to | mm | 150 |
| Windrow movement during turning approx. | m | 1.5 |
| Turning capacity up to | m³/h | 700 |
| Rotor torque | Nm | 1.300 |
| Rotor rotation speed | min-1 | 400 |
| Engine | ||
| Type | Yanmar 4TNV88 40 Kw (55 hp) @ 2,400 or Yanmar 4TNV88 35.4 Kw (50 hp) @ 3,000 | |
| Emission level | IV EuroMot / Tier 4 or III A EuroMot / Tier 3 | |
| Cylinder | 4 | |
| Three-phase generator | V/A | 12 / 40 |
| Battery | V/Ah | 12 / 88 |
| Fuel tank | L | 50 |
